P1.8 P2 P2.5 P3 P4 Muqaal Led dabacsan oo dabacsan

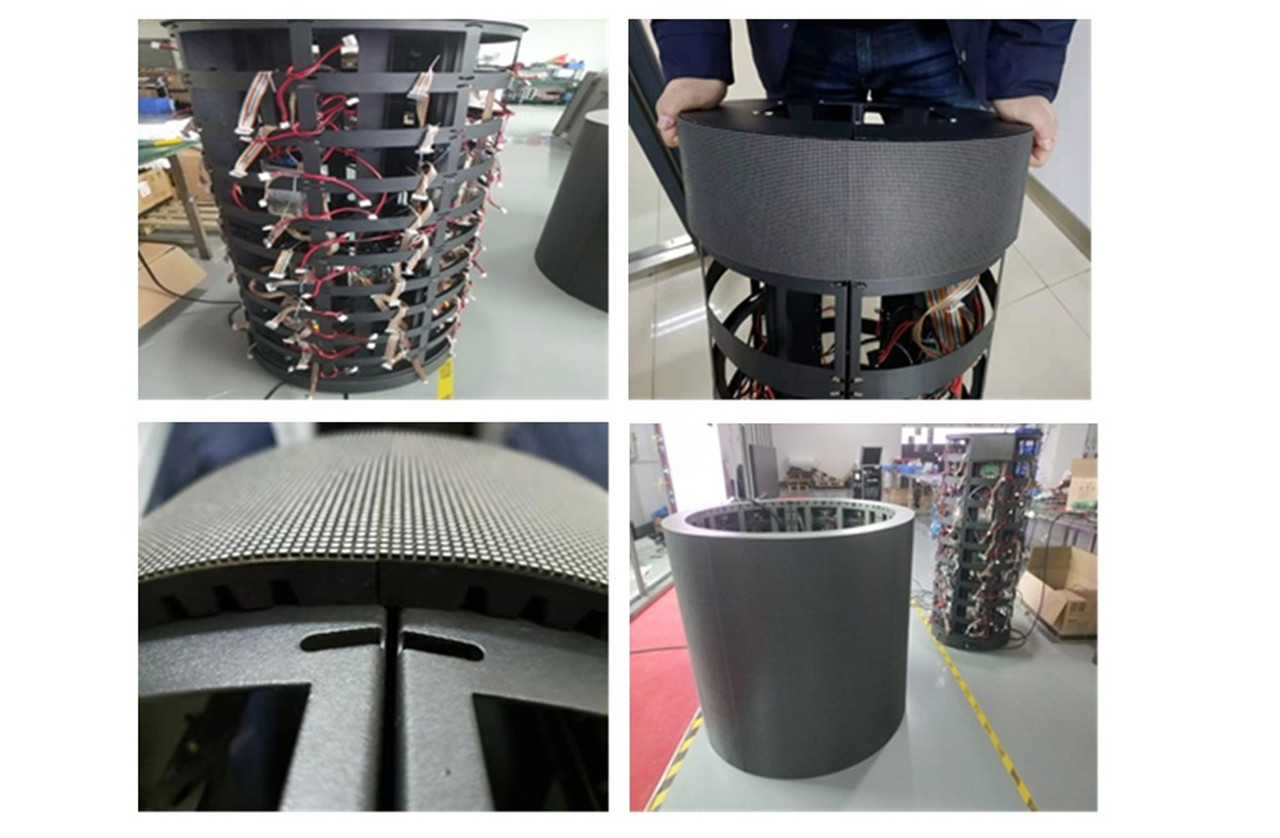

Shaashadda dabacsan ee led ayaa ah mid inta badan loo isticmaalo in lagu sameeyo shaashadda gudaha ee cylindrical, shaashada qaloocan, iyo shaashadda qaab-dhismeedka, tiir, koonto, convex, wareega 90degree, qaabka S, muraayad hogaamineed fidsan.

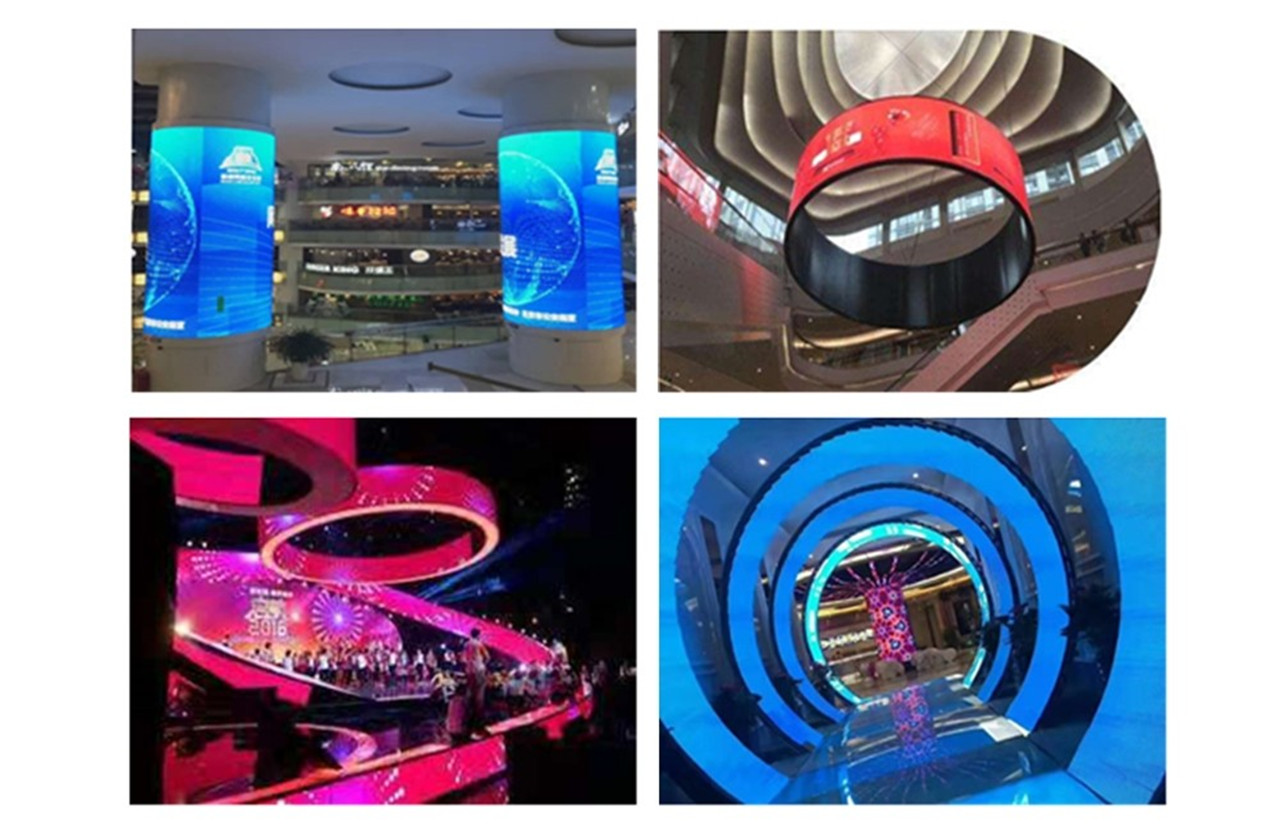

Codsiyada: Suuqyada dukaamaysiga, qolka bandhiga, bandhiga, aroosyada, hudheelada, garoomada diyaaradaha, dukaamada raaxada, dukaamada silsiladaha, hoolalka soo dhawaynta, iwm.
| Pixel Pitch | 4mm | 2.5mm | 2mm | 1.875mm |
| Qaabeynta Pixel | SMD2020 | SMD2020 | SMD1515 | SMD1515 |
| Xallinta moduleka | 80L X 40H | 80L X 40H | 160L X 80H | 128L X 64H |
| Cufnaanta Pixel (pixel/㎡) | 10 000 dhibcood/㎡ | 160 000 dhibcood/㎡ | 250 000 dhibcood/㎡ | 284 444 dhibcood/㎡ |
| Cabbirka moduleka | 320mmL X 160mmH | 320mmL X 160mmH | 320mmL X 160mmH | 240mmL X 120mmH |
| Celceliska isticmaalka korontada (w/㎡) | 300W | 300W | 300W | 300W |
| Isticmaalka tamarta ugu badan (w/㎡) | 650W | 650W | 650W | 650W |
| xagasha daawashada | 160° /160° | 160° /160° | 160° /160° | 160° /160° |
| Fogaanta daawashada | 4-120m | 2-80m | 2-80m | 1.5-60m |
| Heerka Cusbooneysii | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Habaynta midabka | 16bit | 16bit | 16bit | 16bit |
| Danab shaqaynaysa | AC100-240V ± 10 , | AC100-240V ± 10 , | AC100-240V ± 10 , | AC100-240V ± 10 , |
| Iftiin | ≥800cd | ≥800cd | ≥800cd | ≥800cd |
| Nolosha | ≥100,000 saacadood | ≥100,000 saacadood | ≥100,000 saacadood | ≥100,000 saacadood |
| Heerkulka shaqada | ﹣20℃～60℃ | ﹣20℃～60℃ | ﹣20℃～60℃ | ﹣20℃～60℃ |
| Qoyaanka shaqaynaysa | 60% ~ 90% RH | 60% ~ 90% RH | 60% ~ 90% RH | 60% ~ 90% RH |
| Nidaamka xakamaynta | Novastar | Novastar | Novastar | Novastar |
Waxaa fiican inaad iibsato dhammaan cutubyada hal mar si aad u hesho shaashad hogaaminaysa, habkan, waxaan ku hubin karnaa in dhamaantood ay isku dufcad yihiin.
Dufcadaha kala duwan ee modules LED waxay leeyihiin dhowr farqi oo u dhexeeya darajada RGB, midabka, jir, dhalaalka iwm.
Markaa modules-yadayadu kuma wada shaqayn karaan cutubyadaadii hore iyo kuwa dambe.
Haddii aad leedahay shuruudo kale oo gaar ah, fadlan la xidhiidh iibkayaga onlaynka ah.
1. Tayo sare;
2. Qiimaha tartanka;
3. Adeegga 24-saac;
4. Kor u qaadida dhalmada;
5. Dalabka yar waa la aqbalay.
1. Adeegga iibka ka hor
Kormeer goobta
Naqshad xirfadeed
Xaqiijinta xalka
Tababarka ka hor hawlgalka
Isticmaalka software
Hawlgal ammaan ah
Dayactirka qalabka
Dejinta rakibidda
Hagidda rakibidda
Dejinta goobta
Xaqiijinta Gaadhista
2. Adeegga iibka
Soo saarista sida ku cad tilmaamaha dalabka
Xogta oo dhan ha cusboonaysiiyo
Xali su'aalaha macaamiisha
3. Adeegga iibka kadib
Jawaab degdeg ah
Xalinta su'aalaha degdega ah
Raadinta adeegga
4. Fikrad adeeg
Waqtiga, tixgelinta, daacadnimada, adeegga qanacsanaanta.
Waxaan had iyo jeer ku adkeysaneynaa fikradda adeegga, waxaanan ku faanaa kalsoonida iyo sumcadda macaamiisheena.
5. Himilada Adeegga
Su'aal kasta ka jawaab;
Wax ka qabashada dhammaan cabashada;
Adeegga macaamiisha degdega ah
Waxaan horumarinay ururkayaga adeegga annagoo ka jawaabayna oo buuxinay baahiyaha kala duwan ee baahida macaamiisha ee hadafka adeegga. Waxaan noqonay urur adeeg oo kharash-ool ah, xirfad sare leh.
6. Hadafka Adeegga
Waxa aad ka fikirtay waa waxa aan u baahanahay inaan si fiican u samayno; Waa inaan ku dadaalnaa sidii aan ballanteena u fulin lahayn. Had iyo jeer waxaan maskaxda ku haynaa yoolka adeeggan. Kuma faani karno sida ugu wanaagsan, haddana waxaan ku dadaali doonnaa inaan macaamiisha ka xoreyno welwelka. Markaad mashaakil la kulanto, annagu hortiinna xalalka ayaan hordhignay.
